TAPE MEASURE

Project by Kellie Whitworth

7th hour IED

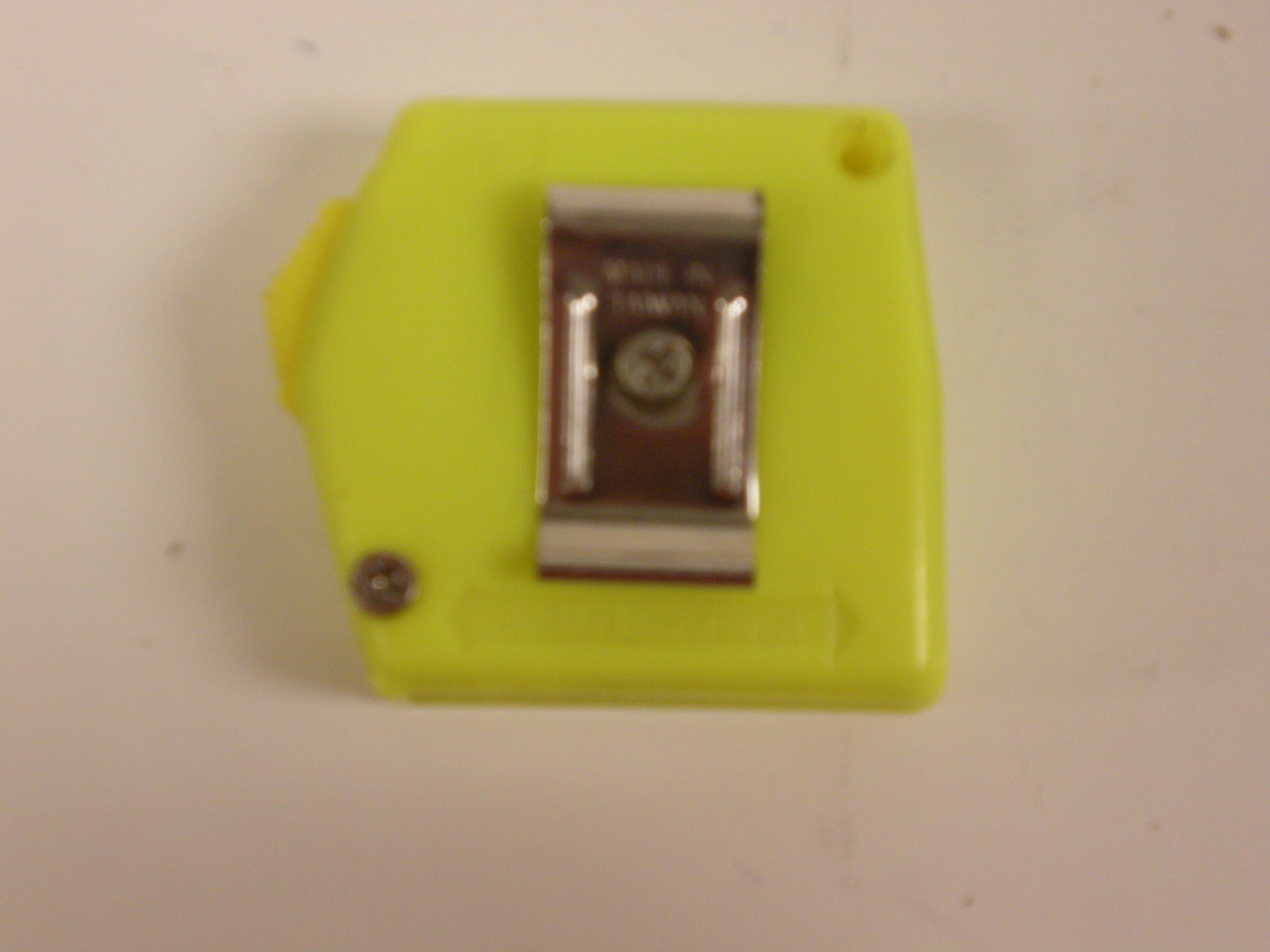

Tape Measure made by Tool Shop TM, 10' long


The tape measure can be used to aid in finding measures of flat surfaced objects. The flexible tape is labeled with inches all the way up to the measurement of ten feet. The tape is pulled out of the casing manually with a metal tab and will stay stationary when the plastic stopper is pushed down (also manually). Once the tape is out, one can measure any flat surface with a length of less than ten feet by placing the tap end against the tip of the object being measured and placing the tape down along the object until the end is reached and finding the number and line that is closest or on the very end tip of the object being measured.
Those who do house repair or construction, those who build objects or other such activities would need the tape measure to accurately find the dimensions of what they are attempting to measure.

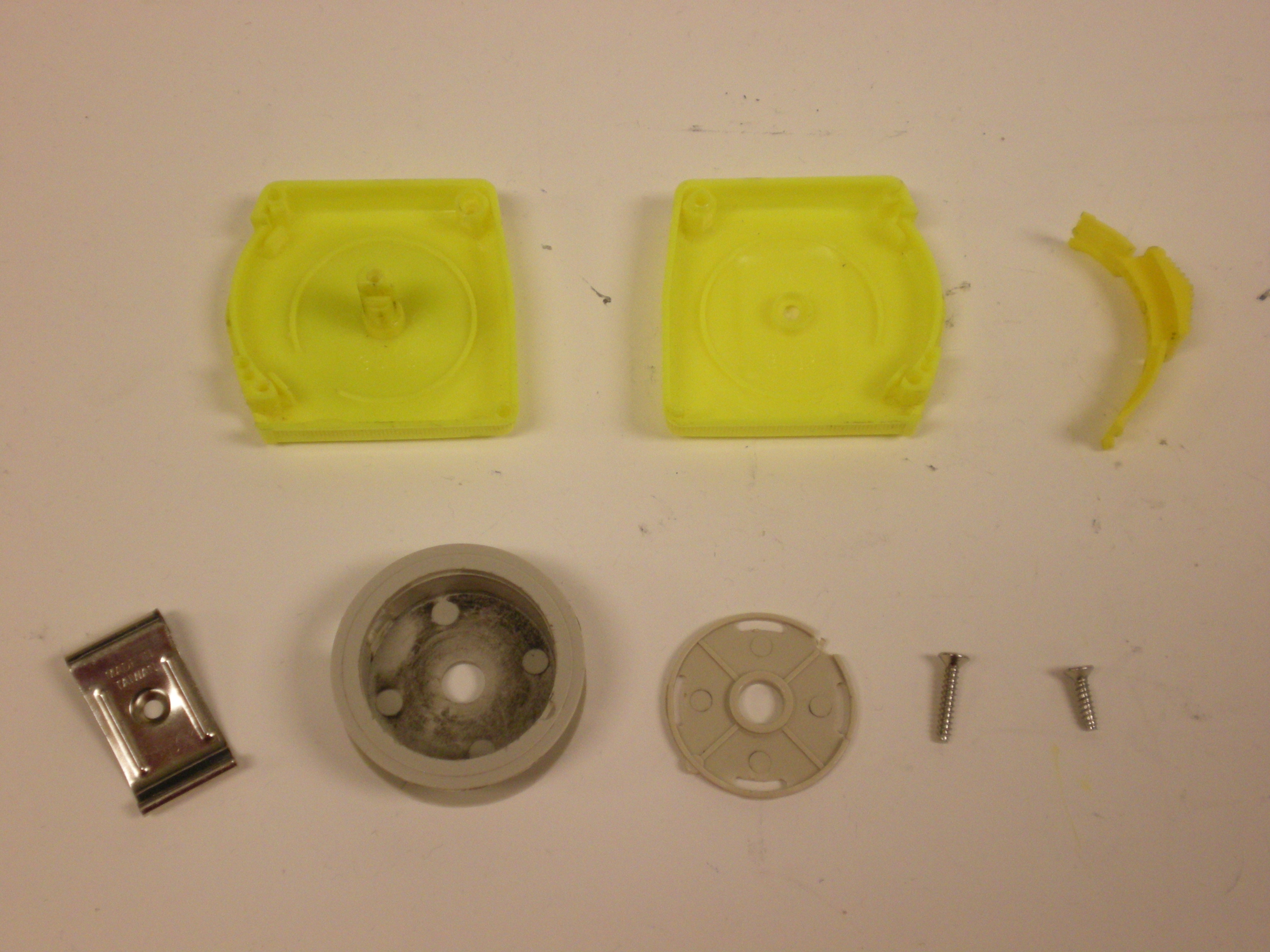

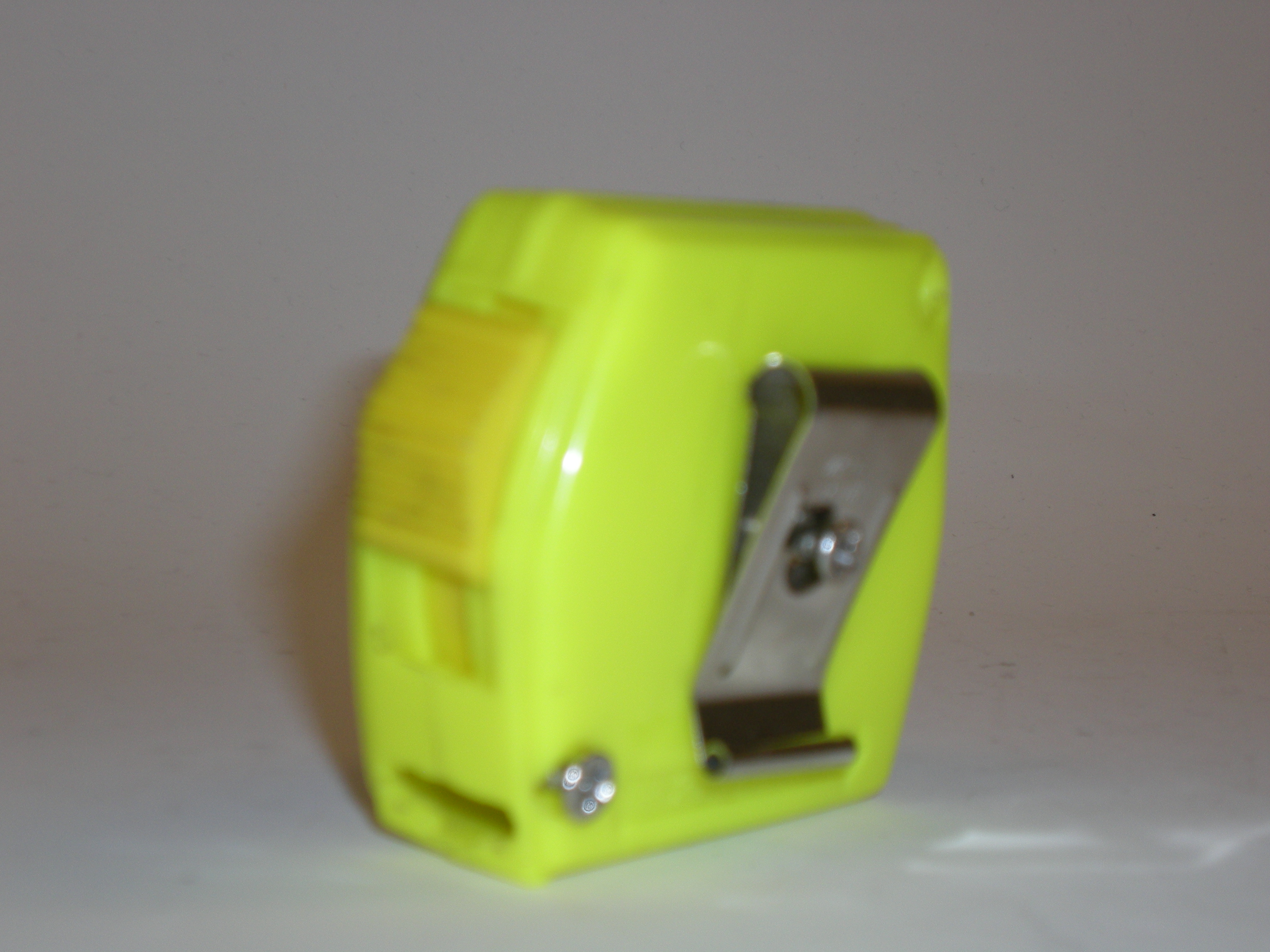

The parts photographed

Rendered tape measure assembly

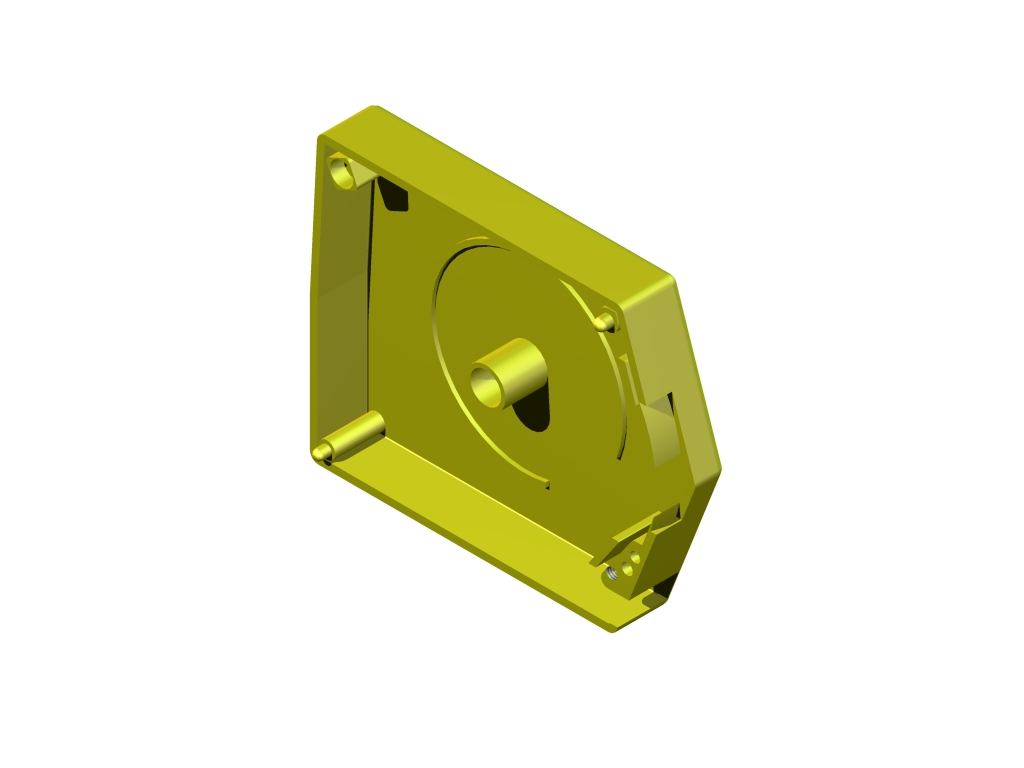

Description: Front-side casing of the tape measure. Also used to hold on spool for tape and areas for screws.

Overall Dimensions: Length- 2.228"    Width- 2.113"    Depth- .800"

Material: ABS plastic

Description: Back-side casing of the tape measure. Used to contain the tape and spool.

Overall Dimensions: Length- 2.228"    Width- 2.113"   Depth- .800"

Material: ABS plastic

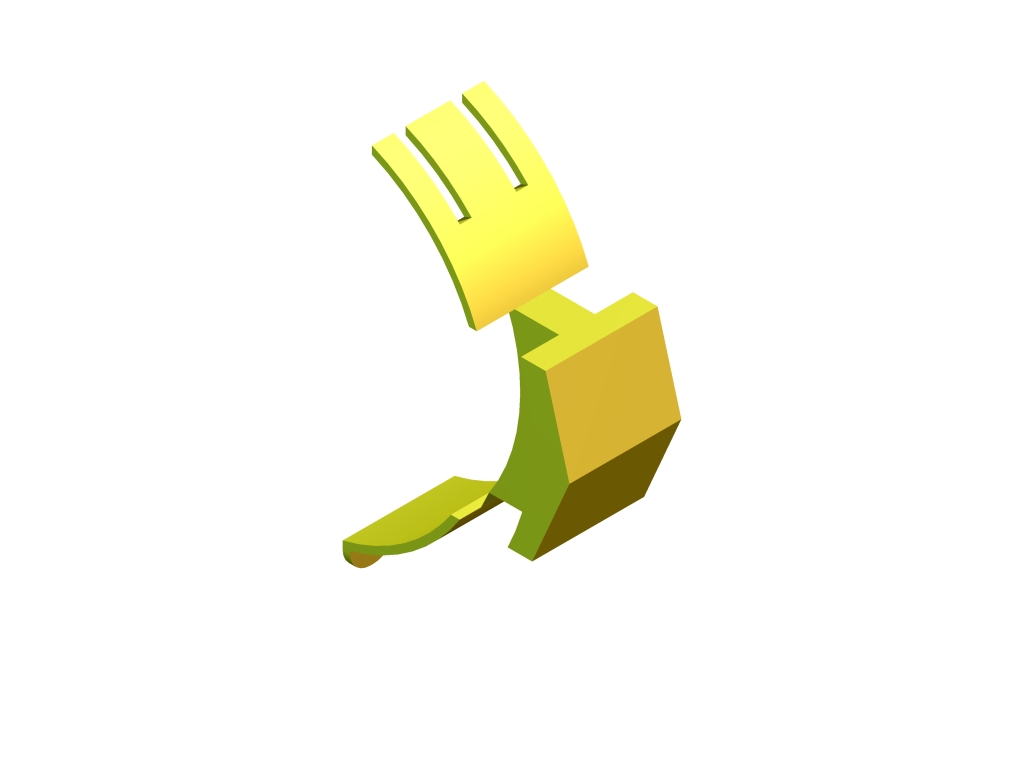

Description: Stopper to stabilize the tape positioning. Holds the tape in place.

Overall Dimensions: Diameter of arc- 1.785"   Depth- .214"   Width- .524"

Material: ABS plastic

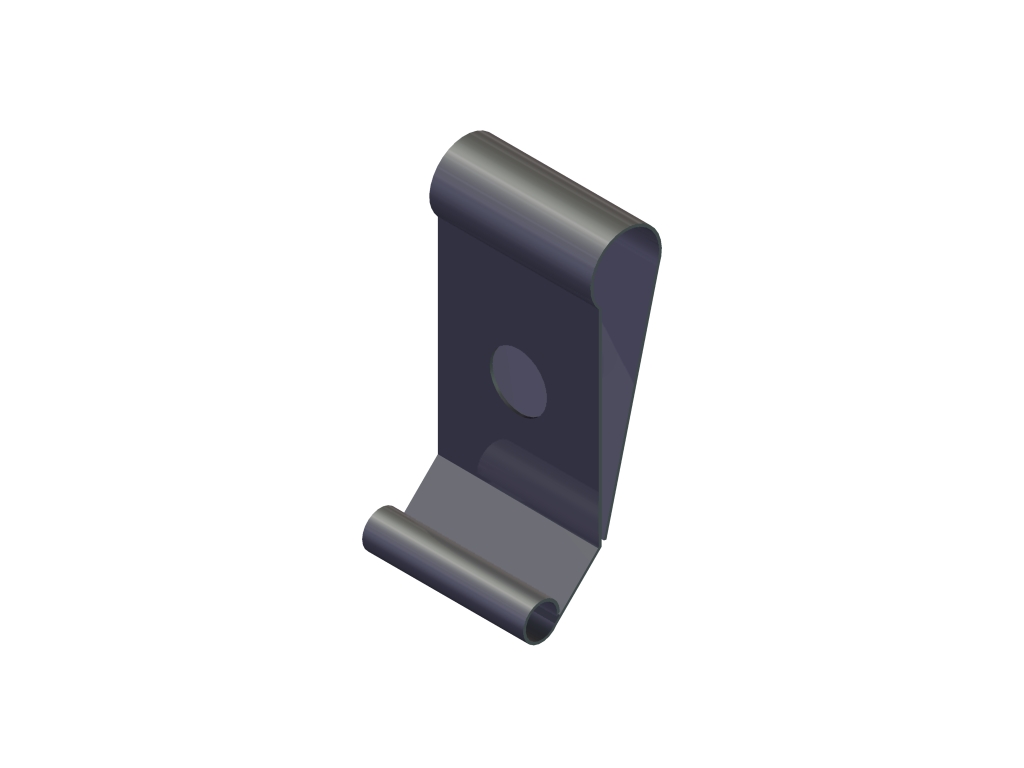

Description: Clip to hook on to surface for carrying such as a pocket or belt.

Overall Dimensions: Length- 1.364"   Width- .721"   Depth- .281"

Material: Carbon Steel

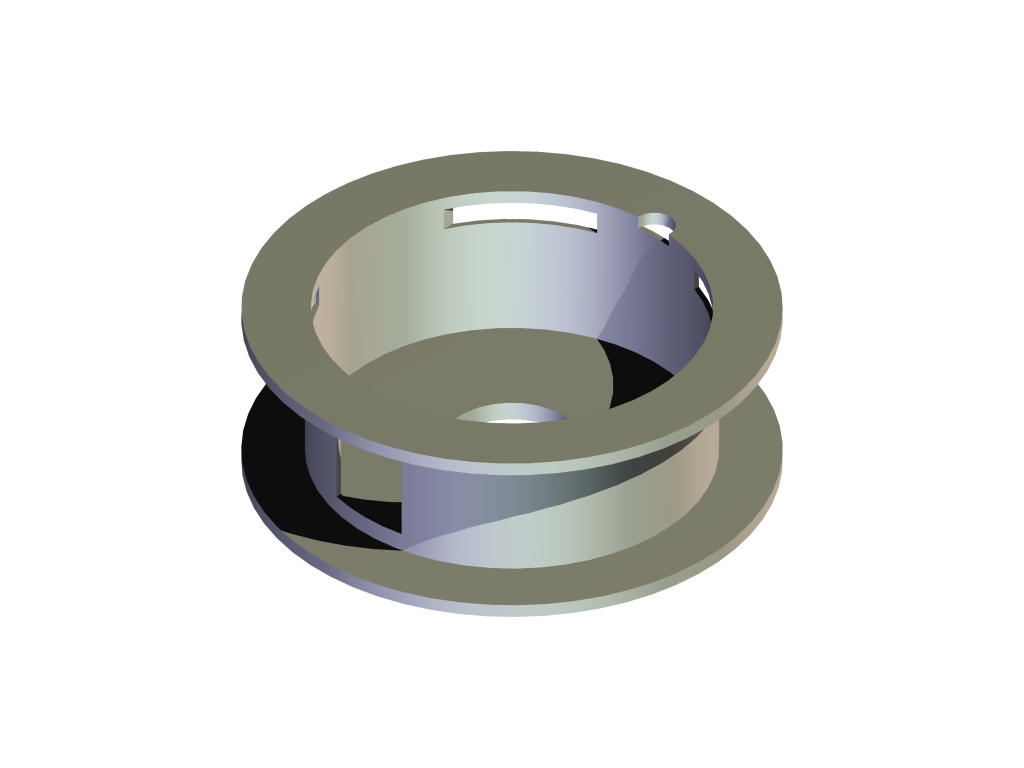

Description:Spool to contain spring and for tape to wind around in a compact fashion.

Overall Dimensions: Diameter- 1.813"   Height- .629"

Material: ABS plastic

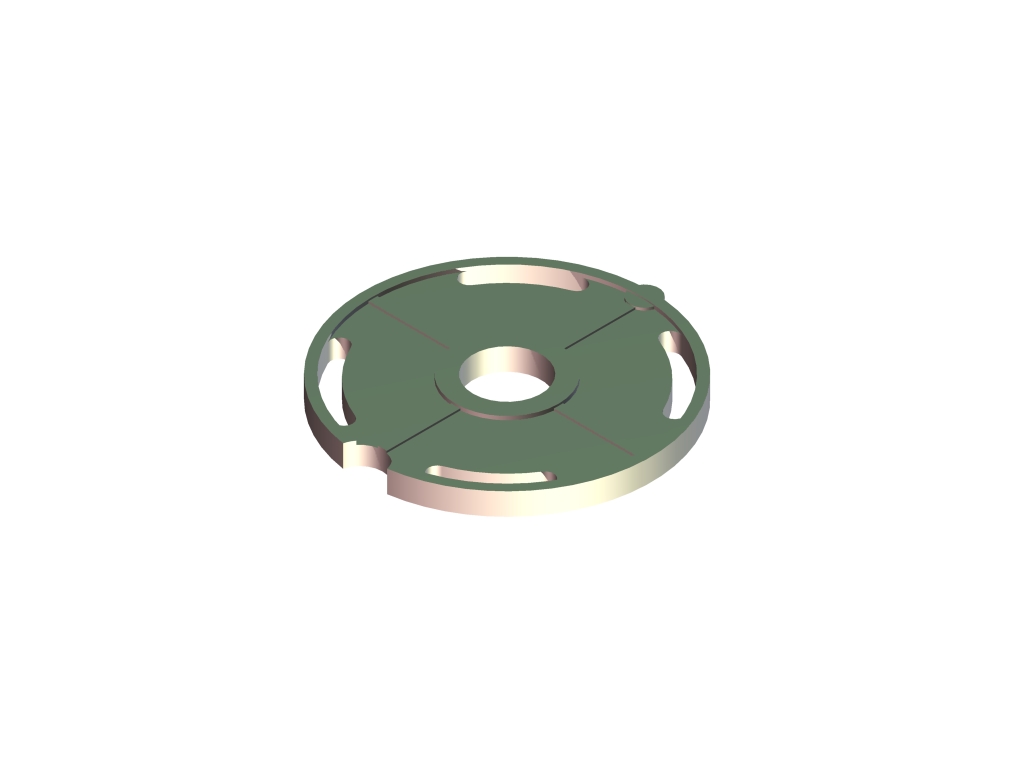

Description: Top of the spool to aid the spool to contain the spring and the tape.

Overall Dimensions: Diameter-1.404"  Height- .108"

Material: ABS plastic

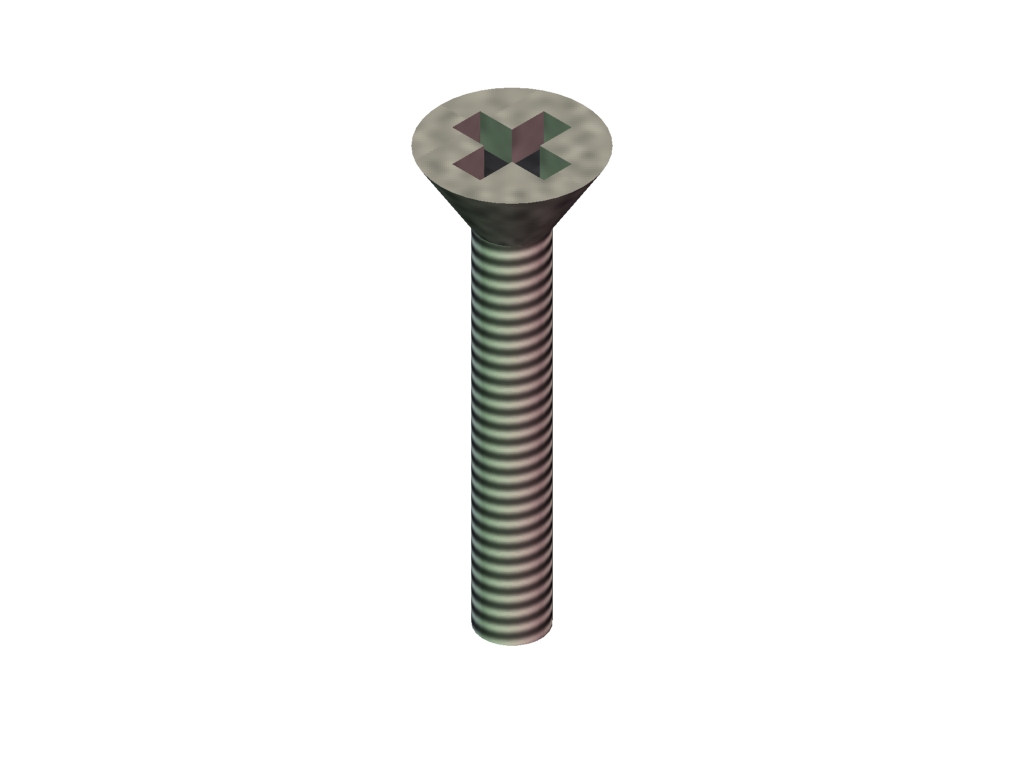

Description: Screw to hold the clip onto the back-side casing.

Overall Dimensions:  Diameter- .230"  Height- .667"

Material: Carbon Steel

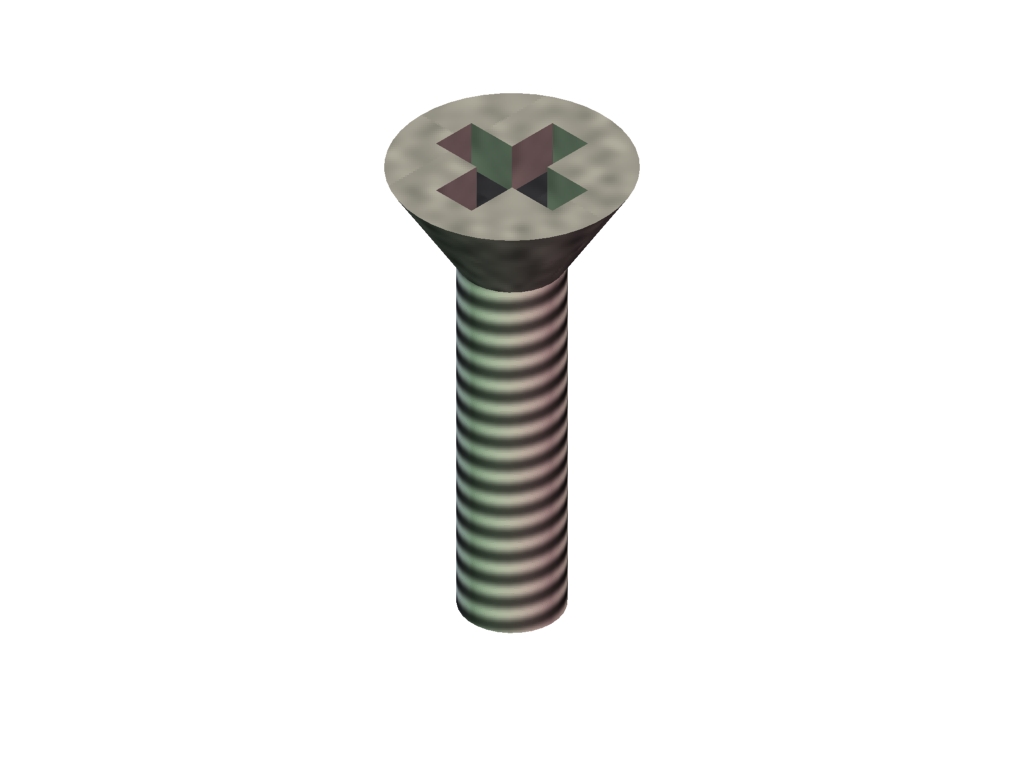

Description: Screw to hold overall part together.

Overall Dimensions: Diameter- .230"   Height- .478"

Material: Carbon Steel
